SKU: ML-DC-RF-T1 Category:

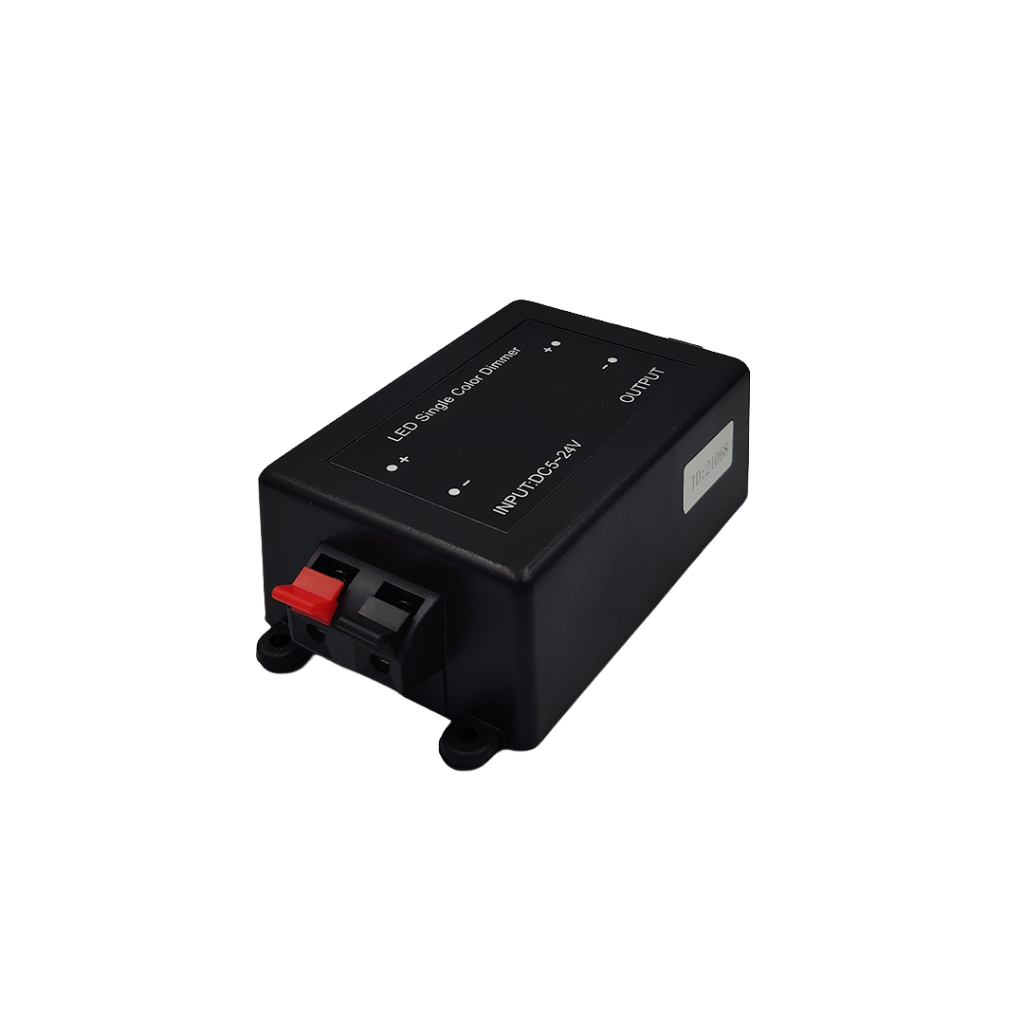

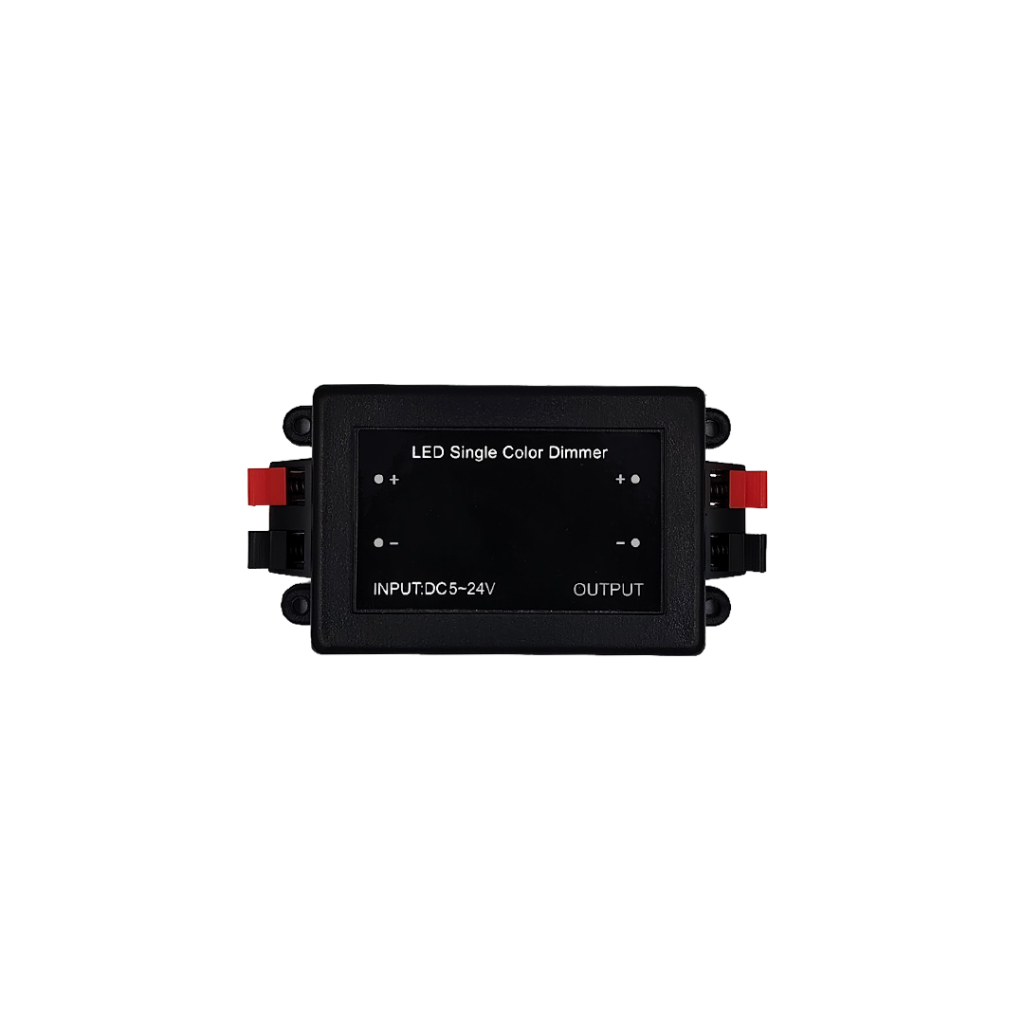

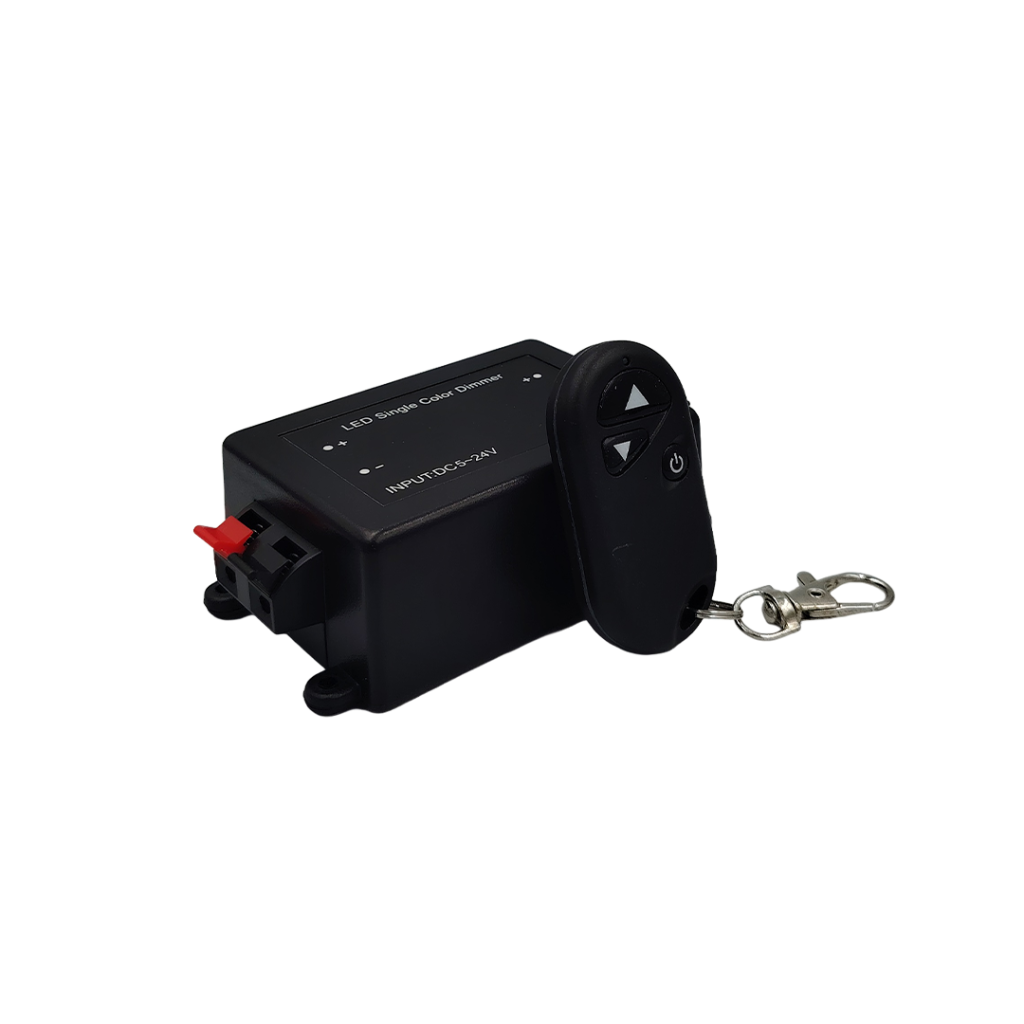

RF LED Strip Dimmer with Remote

The RF LED Strip Dimmer with Remote allows you to easily control the brightness and power of single-colour LED strip lights. Using wireless RF technology, this dimmer provides smooth, flicker-free brightness adjustment and convenient remote control operation, making it ideal for residential, retail and decorative lighting installations.

Loading...

Description

  • Wireless RF dimmer for single-colour LED strip lights
  • Compatible with 12V and 24V DC LED strip lighting systems
  • Smooth PWM digital dimming technology for flicker-free brightness control
  • Wireless RF remote control for convenient lighting adjustment
  • Control range up to approximately 9 metres

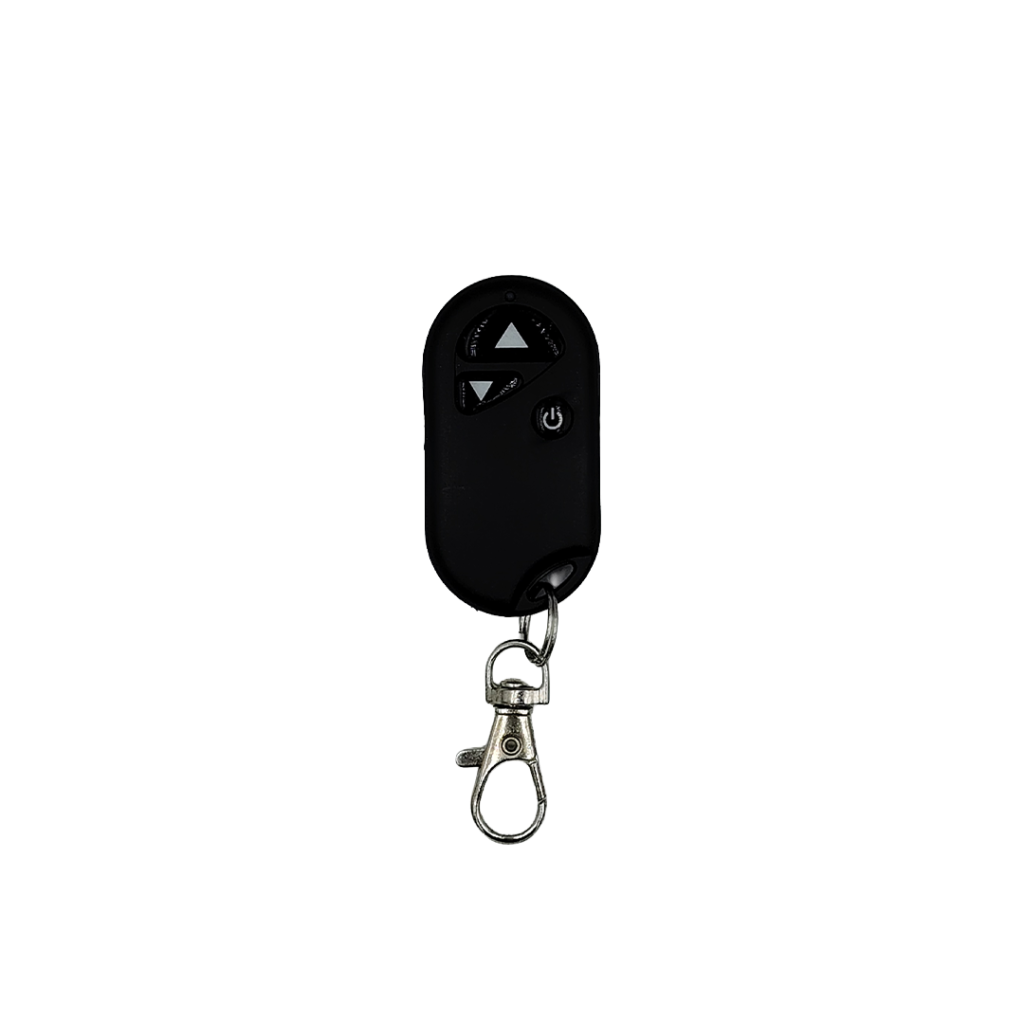

  • Simple 3-button remote design for easy operation
  • Functions include: Power On / Off control / Brightness increase / Brightness decrease
  • Built-in memory function restores the last brightness setting after power off
  • Maximum load current up to 8A
  • Compact controller design for easy inline installation

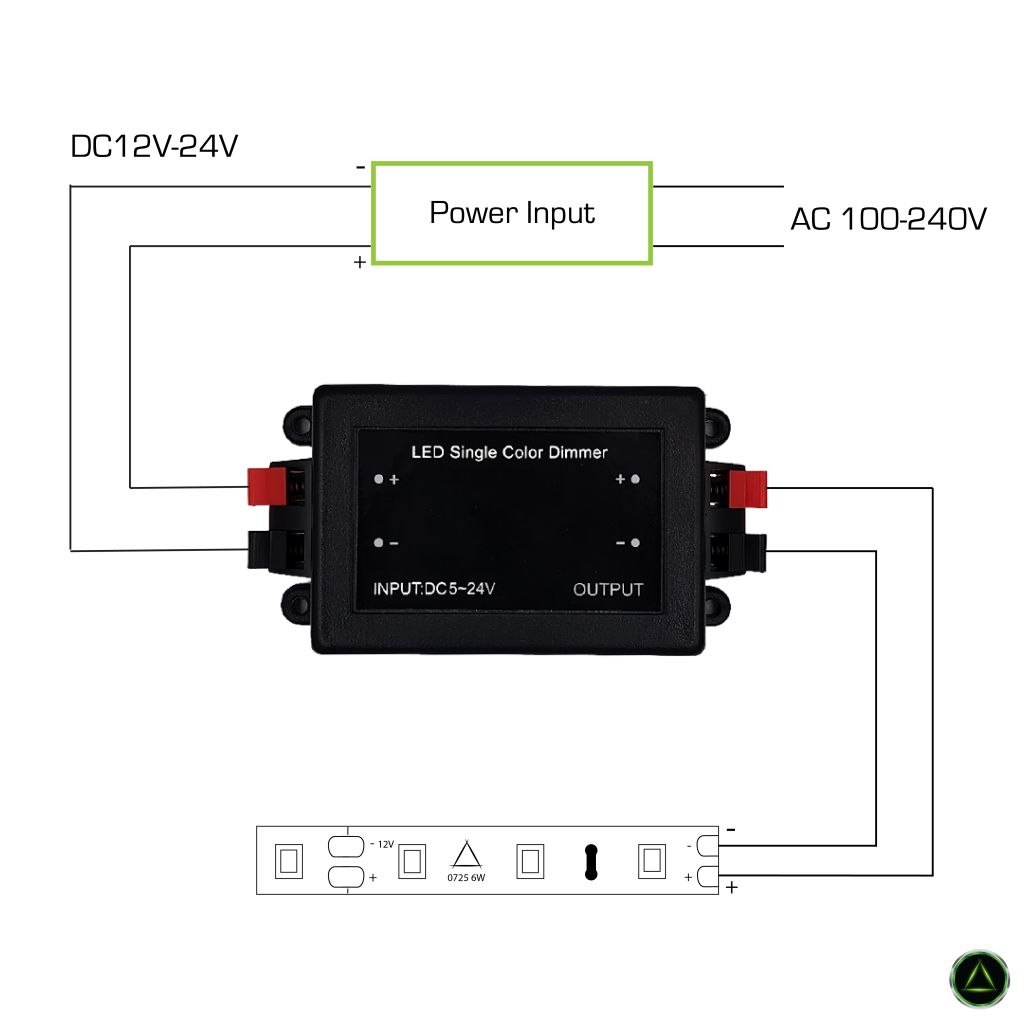

  • Installs between the power supply and LED striplight
  • Helps protect LED strips by reducing inrush current during startup

Additional information

Input Voltage

12V – 24V DC

Maximum Load Current

8A

Control Type

RF Wireless Remote

Dimming Method

PWM Digital Dimming

Control Distance

Up to ±9 metres

LED Type Compatibility

Single Colour LED Strip Lights

Downloads

  • No downloads available for this product.

Lighting Modes

The Zulu Solar Wall Light features four intelligent lighting modes designed to adapt to different outdoor lighting needs. Easily switch between modes to balance brightness, motion detection, and energy efficiency.

Low Light Mode

Provides 25% brightness (250 lumens) in low light conditions for soft ambient illumination while conserving battery power.
Direction Arrows
Step 01

Dim + Motion Mode

Maintains 10% brightness (100 lumens) and increases brightness automatically when motion is detected.
Direction Arrows
Step 02

Motion Security Mode

Remains off in standby mode and activates at full brightness when motion is detected for security lighting.
Direction Arrows
Step 03

Constant Brightness Mode

Delivers constant 100% brightness (1000 lumens) consistently throughout the night until the battery is depleted.
Step 04
