StepSense LED Lighting Controller

• Controls up to 32 individual steps – 32 independent channels for smooth, sequential step-by-step lighting; simply leave unused ports empty for shorter staircases
• Dual sensors included – one for the top (A) and one for the bottom (B) of the staircase, with a 120° detection angle and 1-3 metre sensing range that automatically reads your direction of travel
• Direction-aware cascading effect – steps light in sequence in the direction you walk, then switch off behind you; if both sensors trigger at once, the controller intelligently manages the sequence
• Powerful 500W load capacity – high 3A-per-channel output across 32 channels for large staircases with stable, flicker-free performance
• 5 selectable timing modes – choose how long the steps stay lit: 12s, 20s, 40s, 80s, or full-time (always on till next trigger)
• 6 adjustable brightness levels – set step brightness from 10% up to 100% to suit the mood and setting
• Built-in short-circuit protection – with a five-status indicator strobe that flags any wiring fault, plus reverse-polarity protection to guard against installation mistakes
• Simple DIY programming – press and hold to enter setup mode, then tap to assign each step; settings save automatically
• Safe 12/24V DC low-voltage operation – ideal for residential and commercial installations

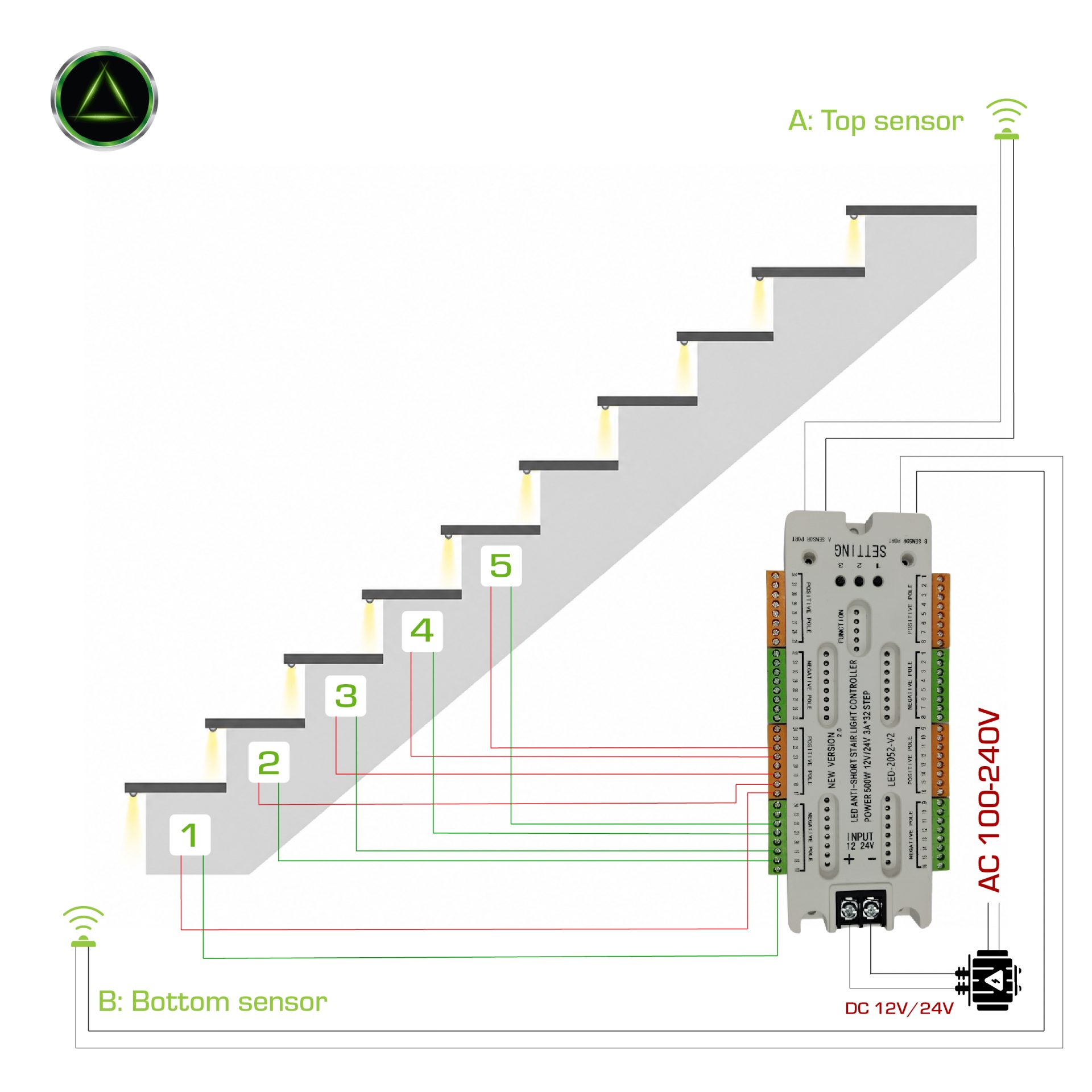

• Compatible with single-colour (monochrome) LED strip and step lights – connect each step’s positive and negative poles to its matching numbered port in sequence
• Flexible sensor mounting – sensor heads can be surface-fixed with exposed screws or concealed for a clean, embedded finish
• Durable, upgraded build – engineered for long-lasting, reliable indoor service

Perfect for: modern homes, double-storey houses, guesthouses, hotels, lodges, Airbnbs, restaurants, and any commercial staircase where safety and style matter.

Please note: This is an indoor controller (IP20) and requires a 12V or 24V DC switching power supply, sold separately, sized to match your total LED load. It controls single-colour LED strips (the strips/step lights are purchased separately). Not waterproof – do not install outdoors, in high-humidity areas, or near open flame.

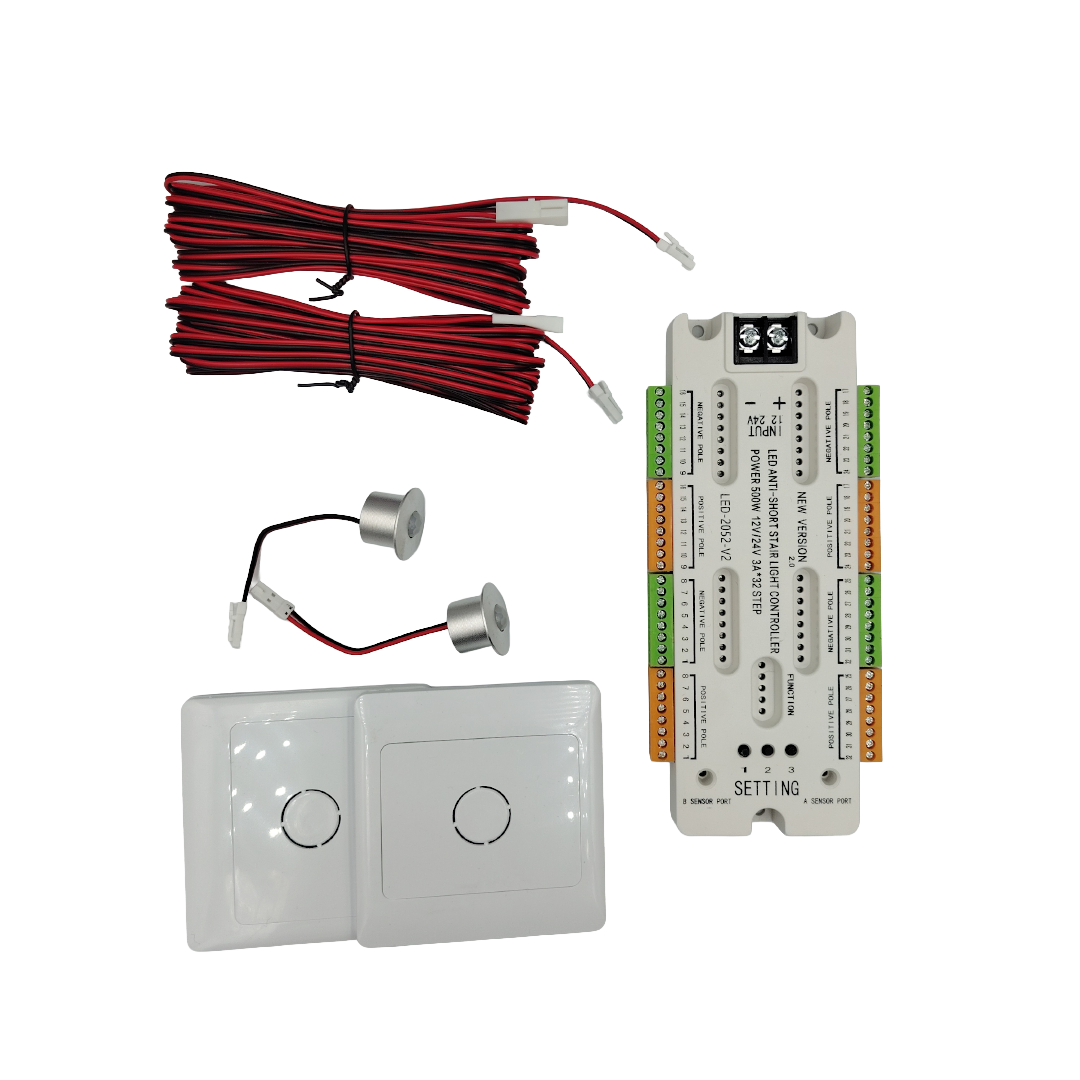

What’s in the box:

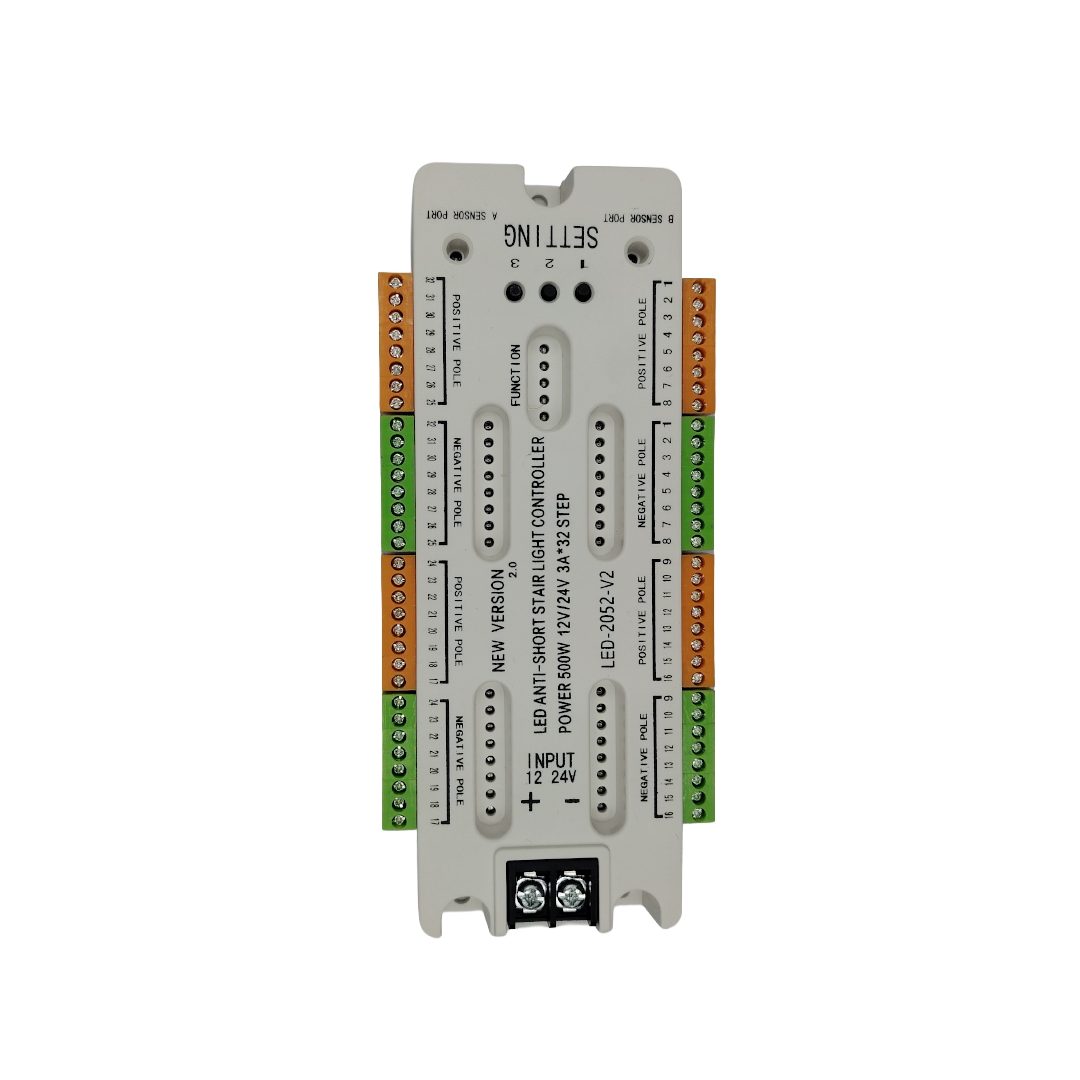

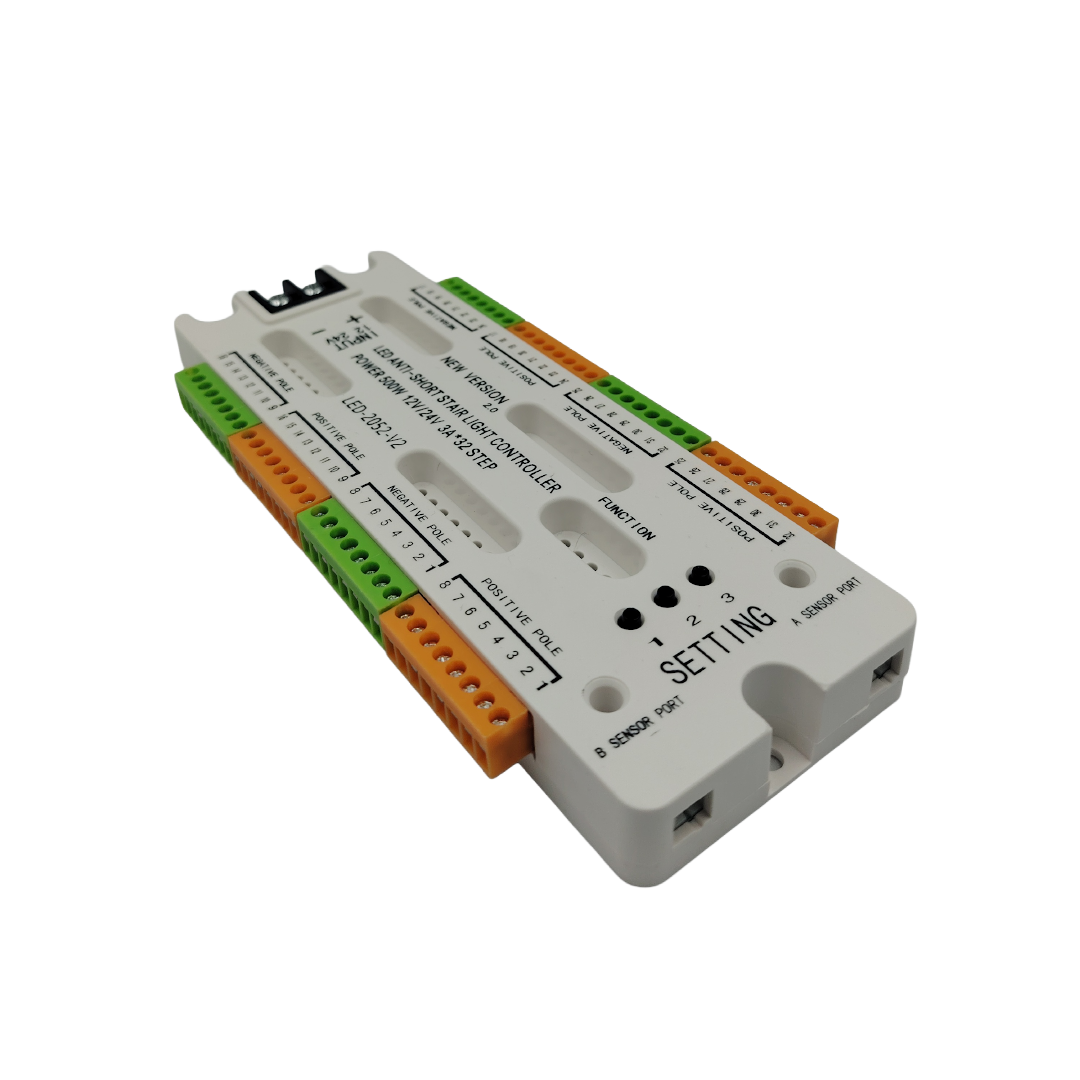

• 1 × StepSense 32-Channel LED Stair Light Controller (Model LED-2052-V2)
• 2 × sensor heads (A & B / top & bottom)
• Two-wire induction connection
