Description
- Selectable wattage via dip-switch: Four power settings (34W, 42W, 49W, 59W) adjustable on site – delivering 5,600lm, 6,720lm, 8,160lm, or 9,600lm respectively, so one fitting covers multiple lighting requirements
- Selectable CCT via dip-switch: Switch between 3000K warm white and 4000K natural white to match the application – warm ambience for residential estates, natural white for roads and public safety lighting

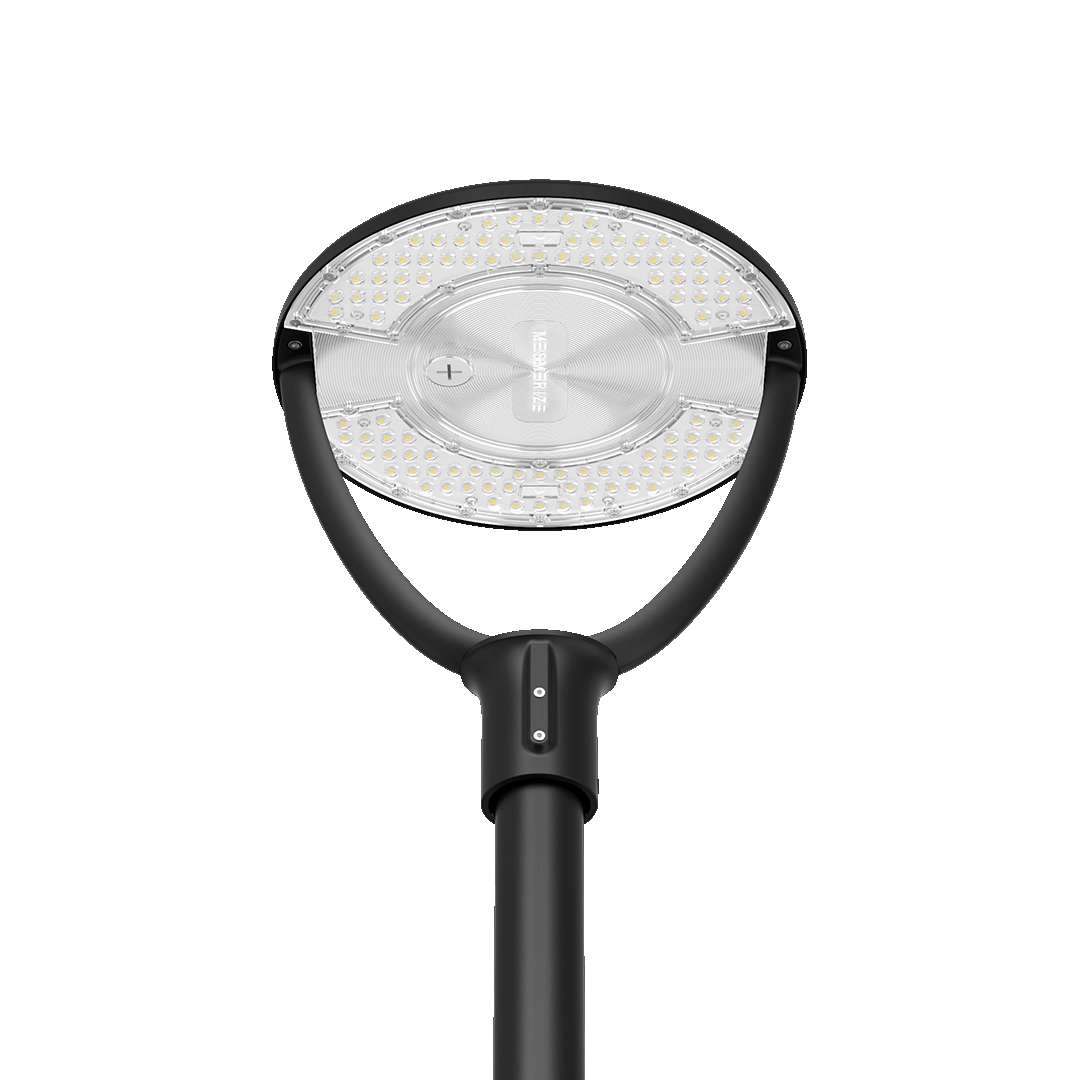

- High-efficiency SEOUL LEDs: 200pcs SMD2835 chips delivering up to 160 lm/W – exceptional lumen output per watt for a post-top fixture
- Wide-area light distribution: 140° beam angle (C0/180: 140°±10°, C90/270: 90°±10°) for broad, even ground coverage – ideal for pathways, parking areas, and open public spaces
- Ra80, R9>0 colour rendering: Accurate, natural colour reproduction for safety and aesthetics in public environments
- Die-cast aluminium construction: ADC12 aluminium top cover, bracket/mounting bracket, and sleeve for serious structural durability and long-term corrosion resistance
- IP66 ingress protection: Fully dust-tight and protected against powerful water jets – built for unprotected, permanent outdoor exposure in all weather
- IK09 impact rating: High resistance to vandalism and impact – suited to public, high-traffic, and unsupervised areas
- 6kV surge protection: L-N: 4kV / L/N-PE: 6kV protection against grid spikes and lightning strikes (IEC/EN61000-4-5)
- Built-in Fahold driver: CE/UL/cUL/FCC certified driver, non-dimmable, with ≥0.90 power factor and short-circuit, overload, and overheat protection
- Wide voltage range: 108–305VAC input (120–277VAC rated) at 50/60Hz for reliable global and local grid compatibility
- Exceptional lifespan: 102,000 hours at L70/B50, 102,000 hours at L80/B20, and 58,000 hours at L90/B10 (TM-21 reported) – engineered for decades of low-maintenance public service
- Wide operating temperature range: -30°C to +50°C – performs reliably in extreme South African summer heat and winter cold
- >25,000 switching cycles: Rated for sustained daily on/off cycling without performance degradation
- Glow wire tested to 850°C: Meets stringent fire-safety standards for public infrastructure lighting
- Class I protection: Earthed for enhanced electrical safety in public installations

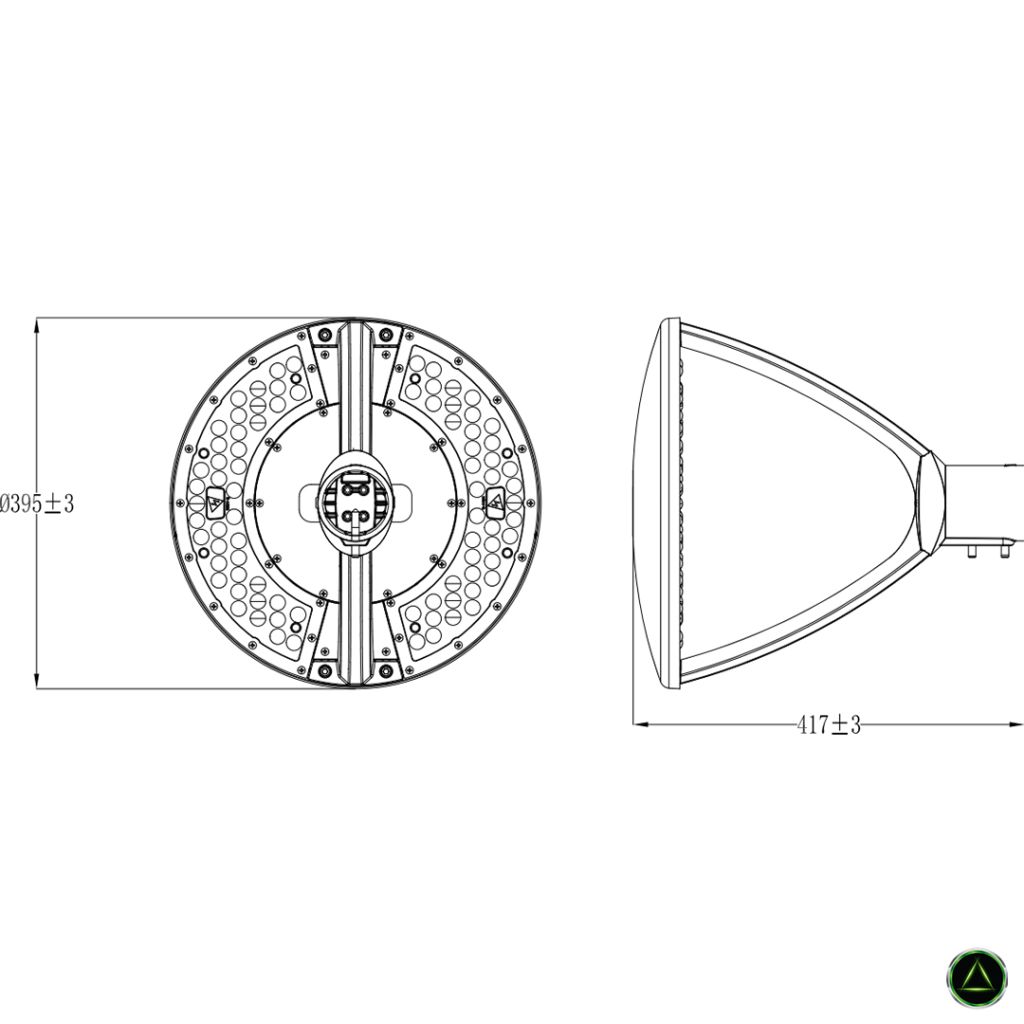

- Pole-mounted installation: Designed for poles with a 48–60mm diameter; luminaire dimension 395mm (D) × 417mm (H), excluding pole
- Spray-moulded black finish: Weather-resistant surface treatment for long-term aesthetic and structural integrity
- Fully certified: Complies with IEC60598-1&2, CE/CB/RoHS, EMC tested and passed
- 5-year warranty
- Premium public-realm applications: Urban roads, residential estates, public parks, parking lots, walkways, and pedestrian plazas
