Nexus – LED Linear Light

The Mesmerize Lighting NEXUS LED Linear Light series delivers powerful, ultra-efficient illumination for commercial and industrial environments. Designed with Mesmerize’s unique private tooling and an anti-glare UGR<19 reflector, it ensures visual comfort, exceptional performance, and long-term reliability. With selectable wattage and CCT options, the NEXUS range provides flexible lighting tailored to any installation.

Loading...

Description

  • 3CCT-in-1 selectable: 3000K / 4000K / 6500K via DIP switch
  • Adjustable wattage: 3-in-1 wattage selection for all models
  • Anti-glare design: UGR <19 reflector for visual comfort
  • High efficiency: 120+ lm/W using Smalite SMD2835 LEDs

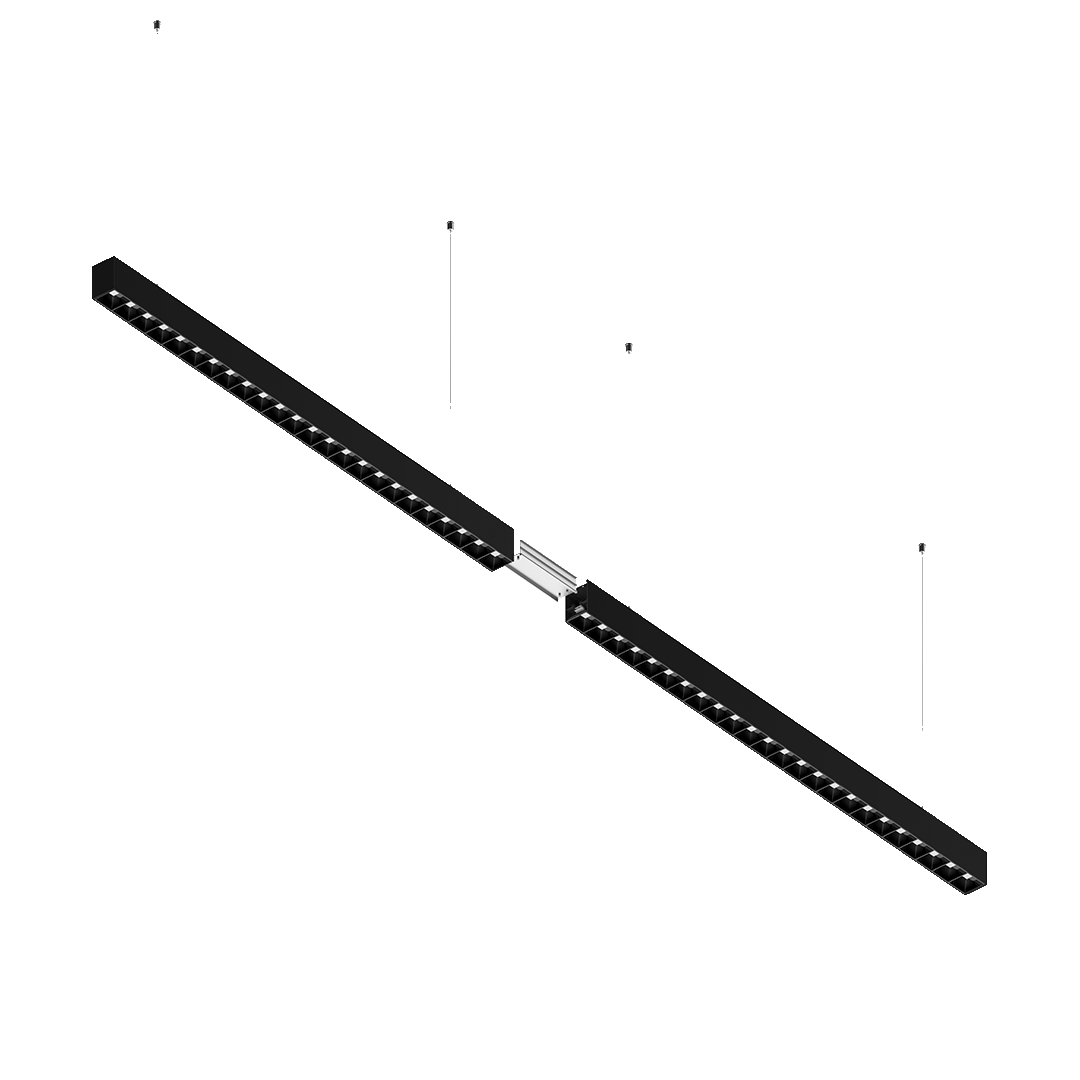

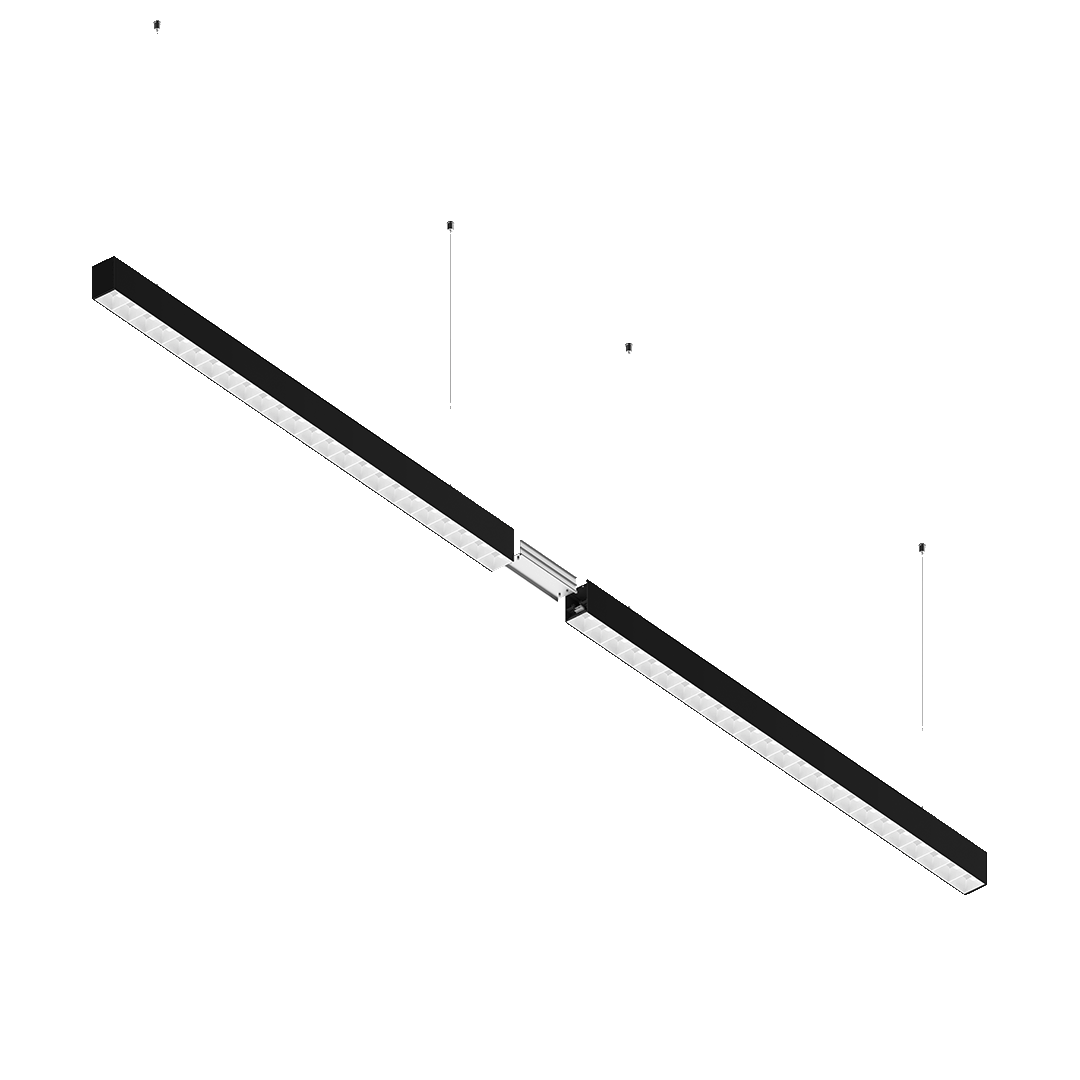

  • Linkable up to 700W total:
  • 2FT – up to 35 units
  • 4FT – up to 17 units
  • 5FT – up to 13 units
  • Premium build: ADC12 die-cast aluminium housing for optimal heat dissipation
  • Flicker-free performance: Mesmerize isolated driver (170–264Vac, PF ≥0.9)
  • Surge protection: L-N: 1.5kV (IEC/EN61000-4-5)

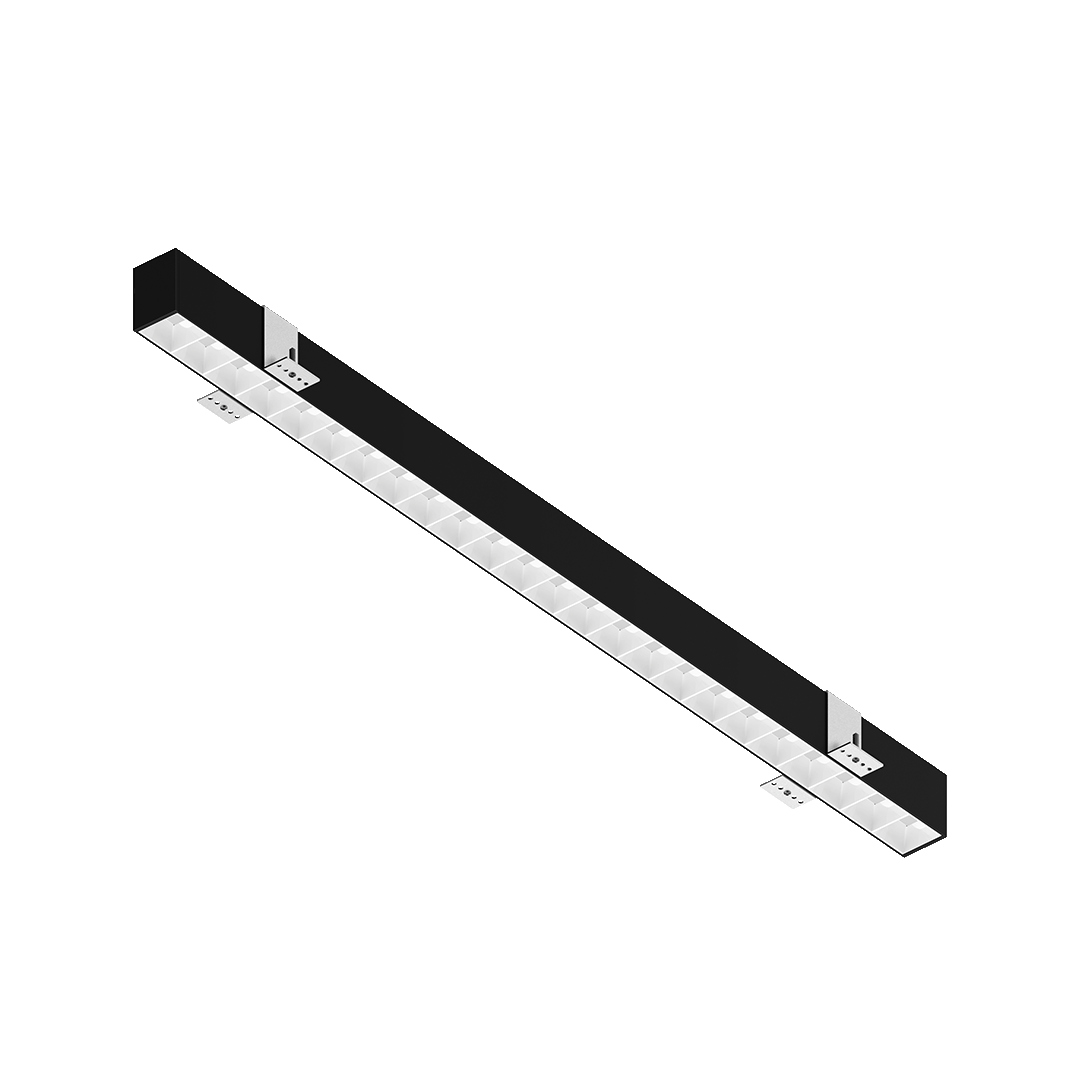

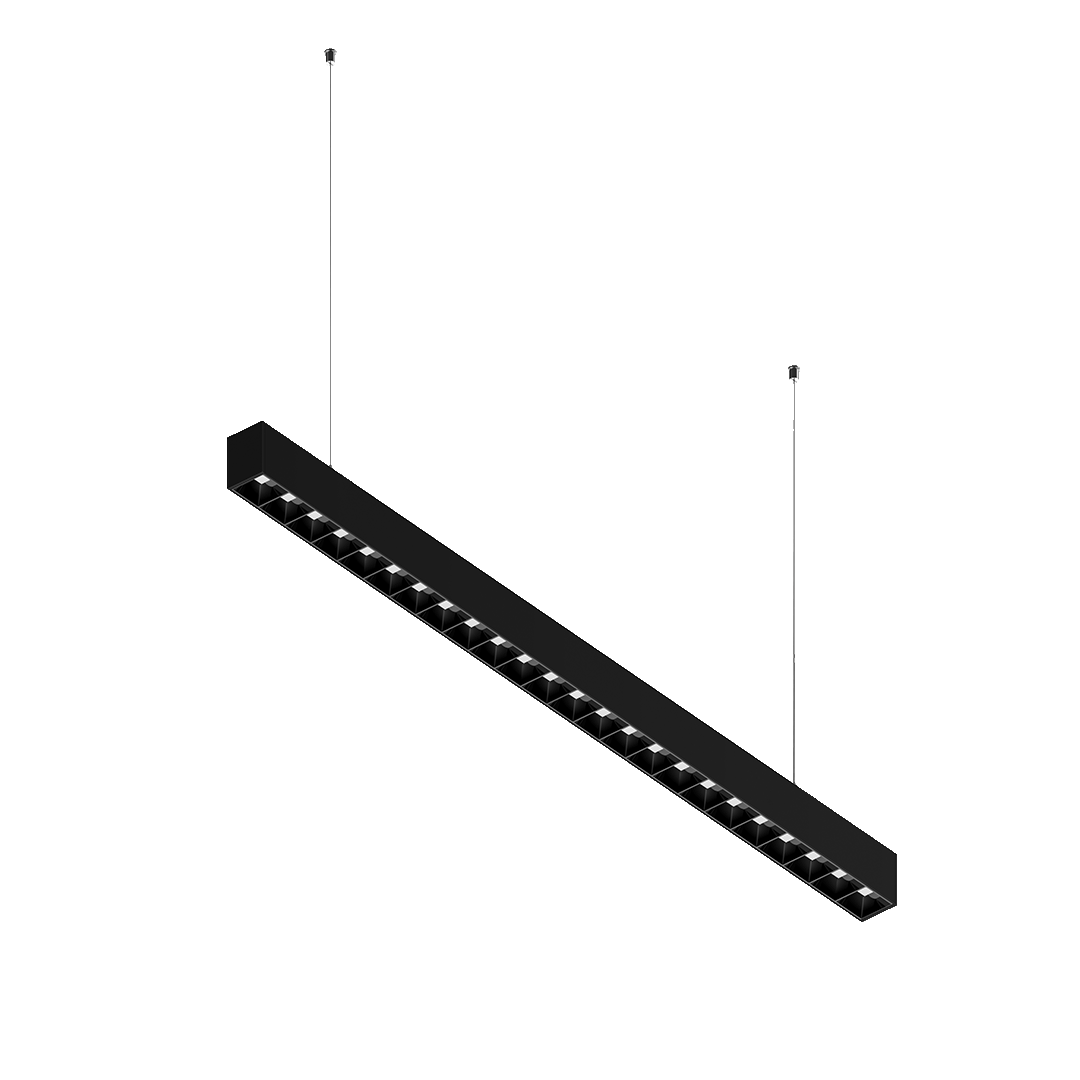

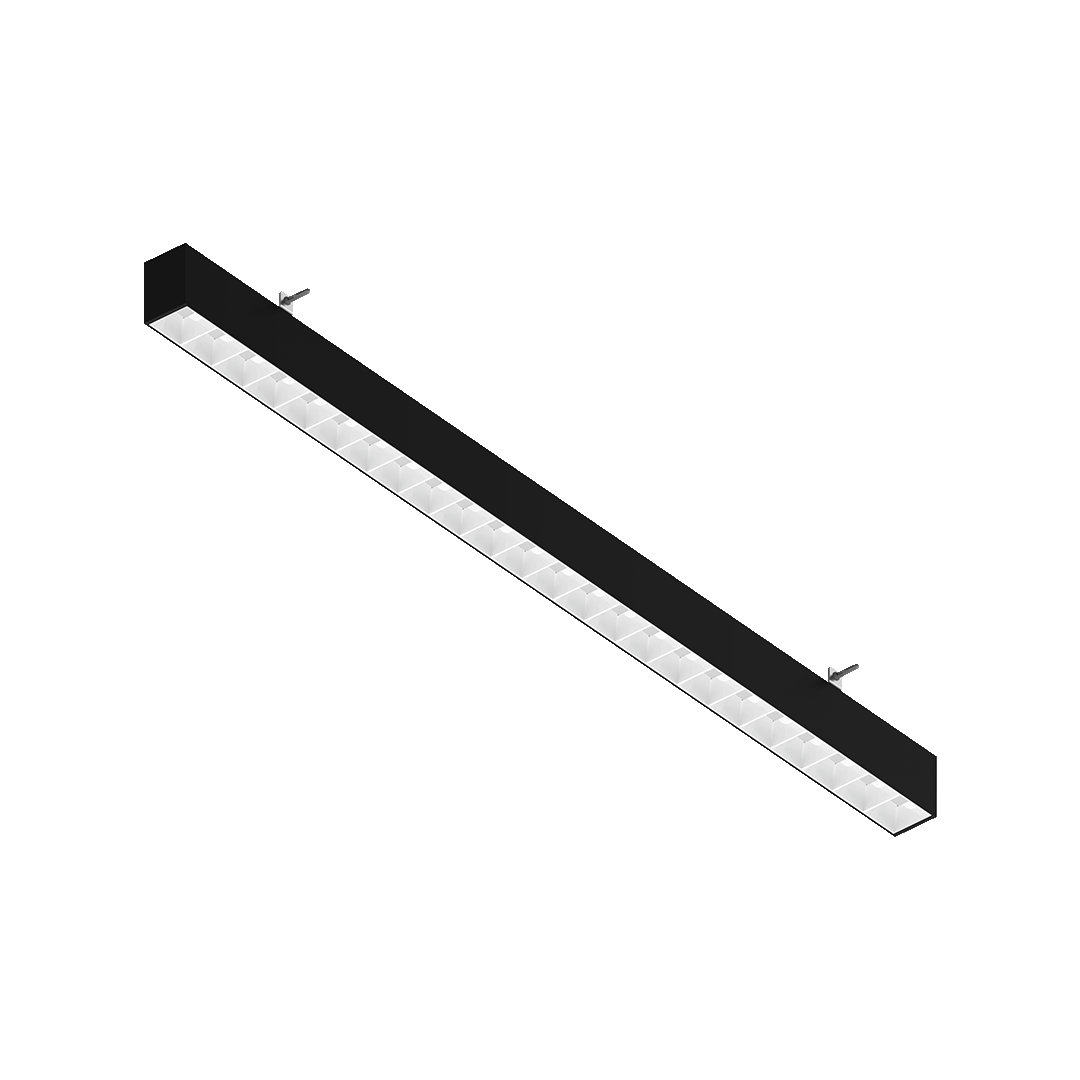

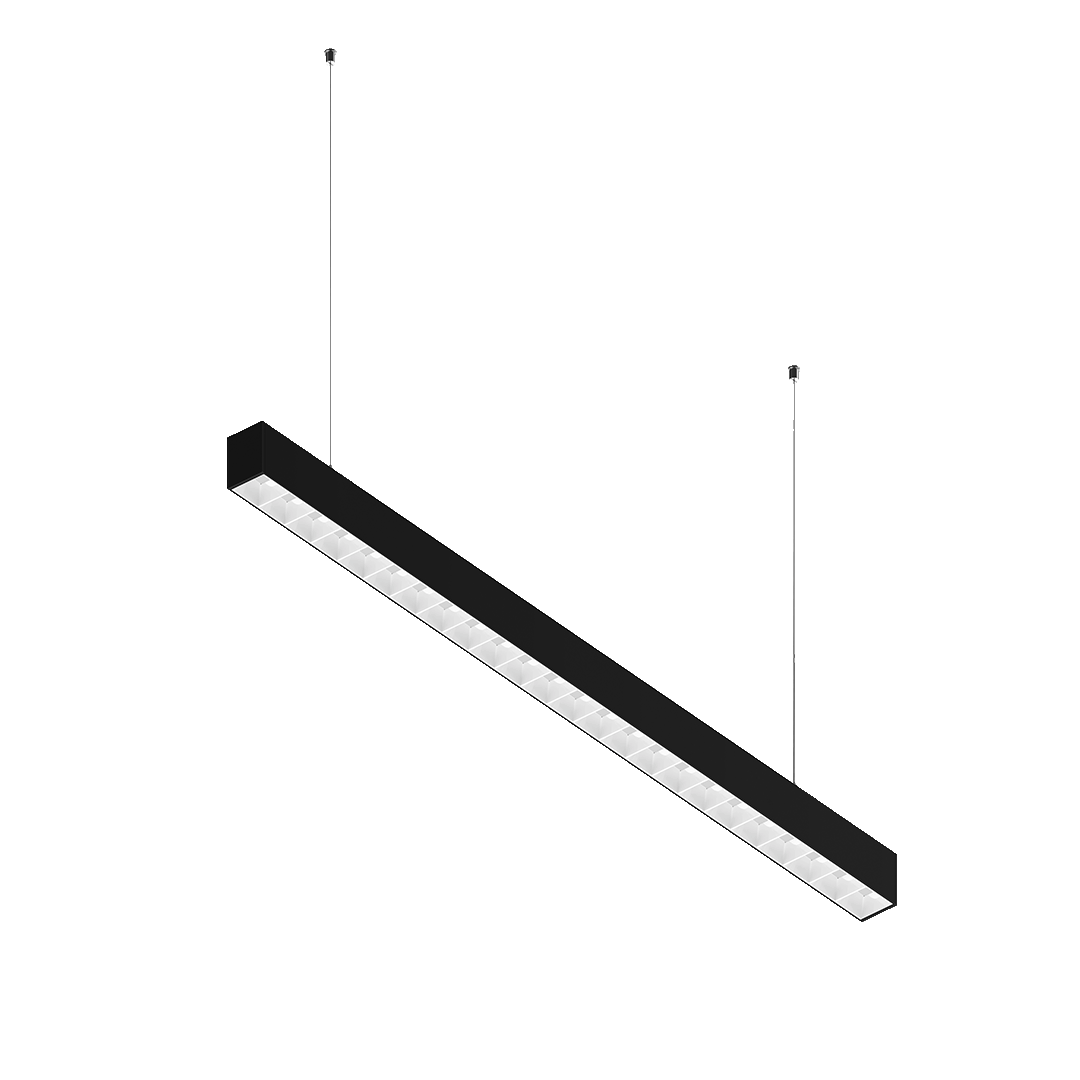

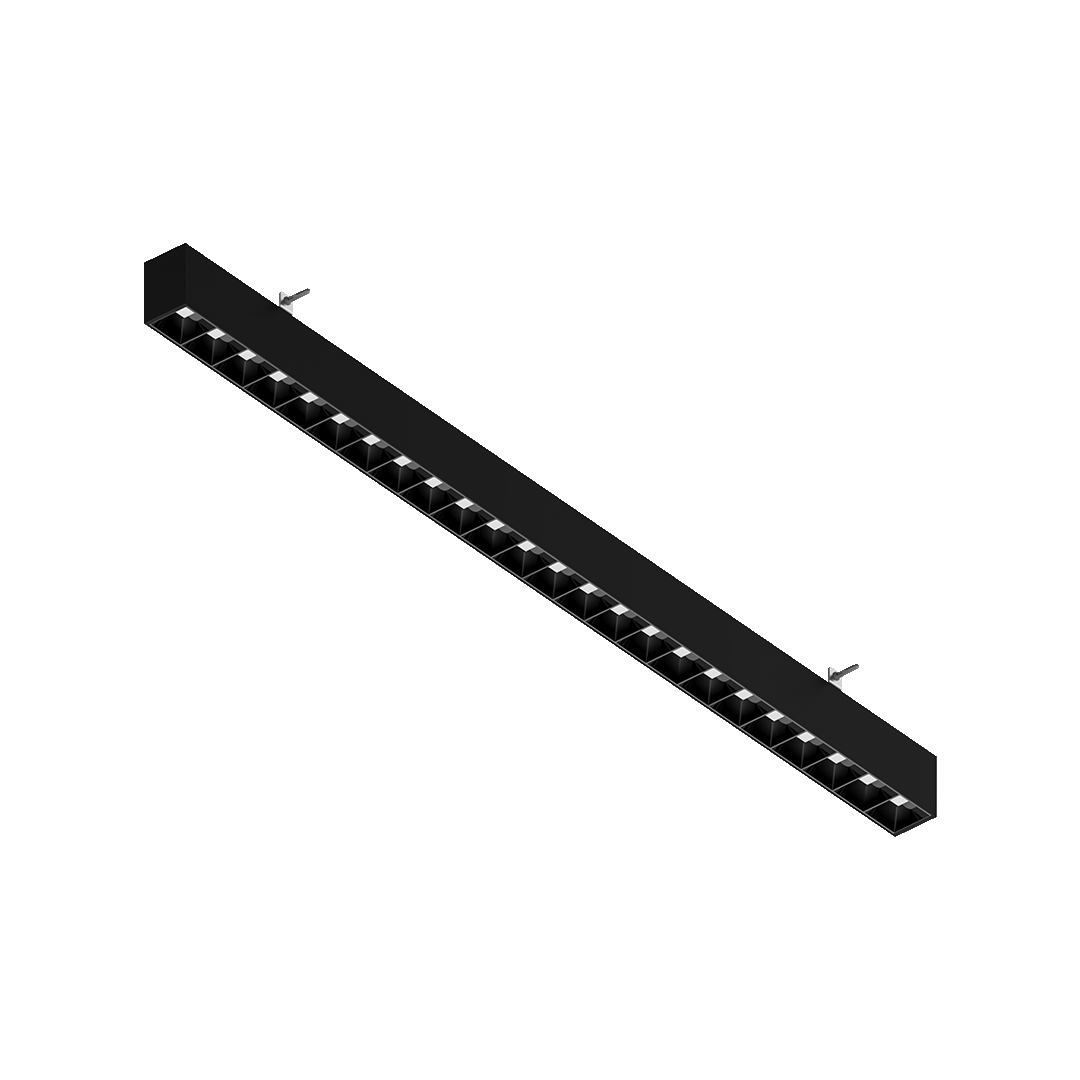

  • Multiple installation options: Surface-mounted or suspended
  • Optional dimming: TRIAC / DALI dimmable driver available
  • Battery backup available on request
  • Colour options: Matte white or matte black housing and reflector
  • Long lifespan: 50,000 hours with a 5-year warranty
  • Certifications: IEC / LOA / CE / RoHS
  • IP40 & IK06 rated – suitable for commercial and industrial interiors

Additional information

Dimensions N/A
Power Selectable

12W/16W/20W, 24W/32W/40W, 31W/41W/51W

Colour Temperature (Kelvins)

Effective Lumen

, ,

Colour Rendering Index

Beam Angle

Flicker Free

Yes

Power Factor

Input Voltage

Surge Protection

Battery Backup

Available on request

Linkable

≤13pcs, 700W max., ≤17pcs, 700W max., ≤35pcs, 700W max.

Dimmable

Warranty

Applications

Downloads

  • Select a variation to see downloads.

Lighting Modes

The Zulu Solar Wall Light features four intelligent lighting modes designed to adapt to different outdoor lighting needs. Easily switch between modes to balance brightness, motion detection, and energy efficiency.

Low Light Mode

Provides 25% brightness (250 lumens) in low light conditions for soft ambient illumination while conserving battery power.
Direction Arrows
Step 01

Dim + Motion Mode

Maintains 10% brightness (100 lumens) and increases brightness automatically when motion is detected.
Direction Arrows
Step 02

Motion Security Mode

Remains off in standby mode and activates at full brightness when motion is detected for security lighting.
Direction Arrows
Step 03

Constant Brightness Mode

Delivers constant 100% brightness (1000 lumens) consistently throughout the night until the battery is depleted.
Step 04

Related Products

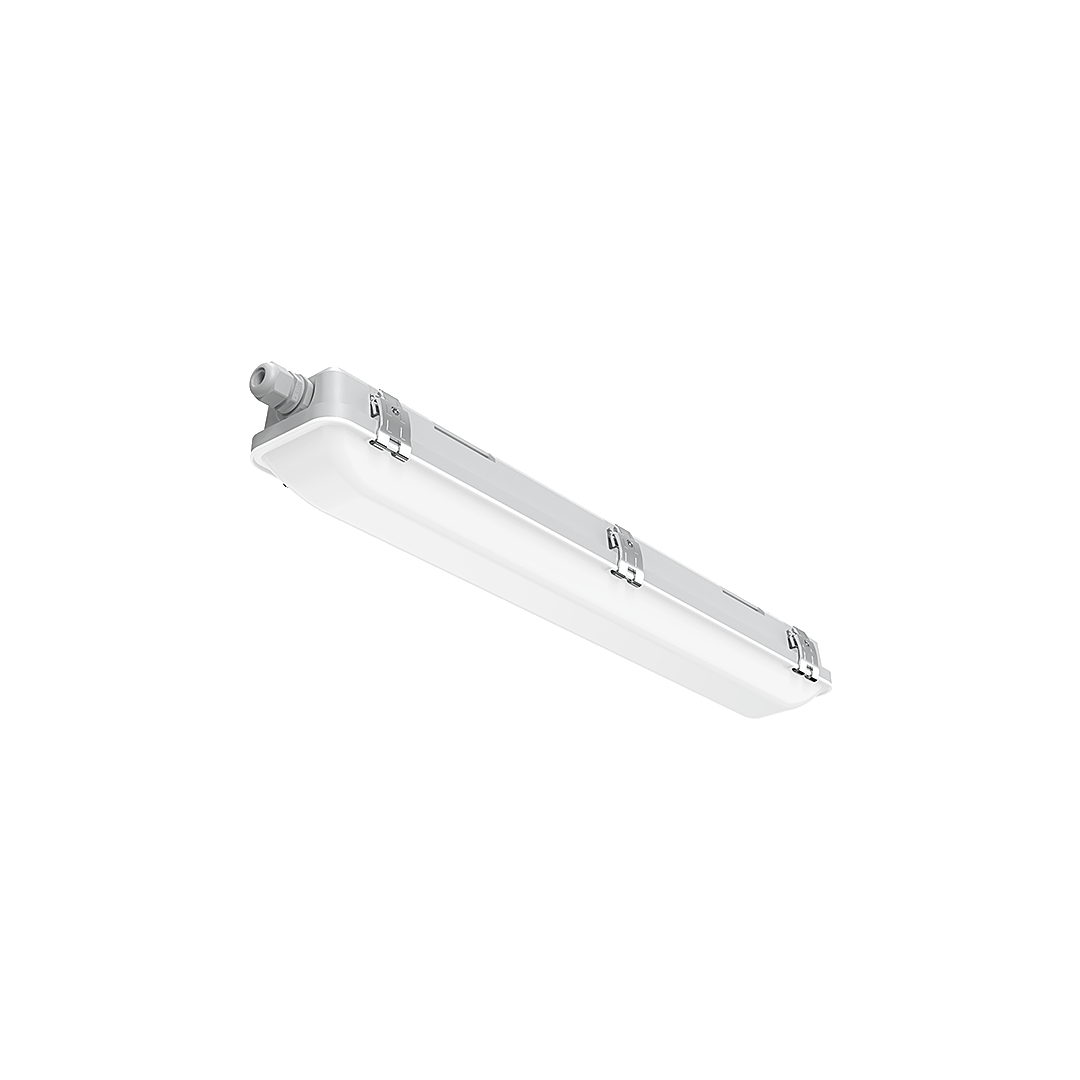

Morpheus – 9W + 18W 2FT LED Damp Proof Light
IP65 – 5FT Double LED Vapour Proof Fitting
Linear IP33 – 20W LED Indoor Light

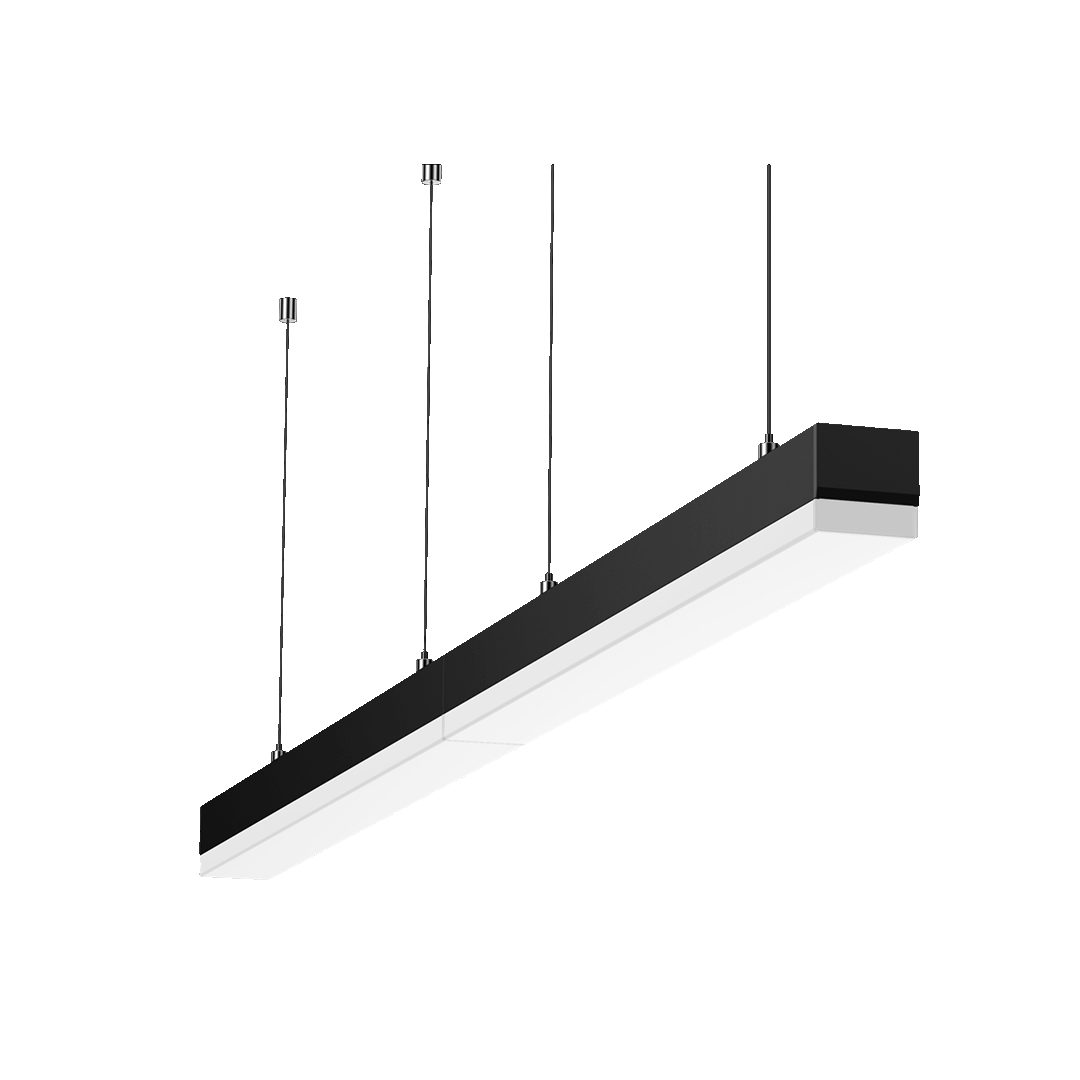

Vertex CCT – LED Linear Light
